18m2 Sun Shelter Garden Wall Mounted DIY Patio Cover Aluminum Sunshade Outdoor Gazebo Patio Cover Canopy Awnings

Polycarbonate sheets are resistant to UV rays, and this material is 200 times more resistant to impact than glass. It is a modern structure with an attractive appearance that will perfectly integrate with newly built buildings.

The polycarbonate plates used are 8 mm thick and are covered by a 5-year warranty - this is a very important parameter that determines the quality of polycarbonate.
Canopies available in a fixed length (dimension from the wall to the base) 300 cm. Canopies can be combined with each other.

1.Self-assembly possible
2.Adjustable poles in two planes (the base dimension may be smaller than the total dimension)
3.Aluminum construction material in Black powder coated - very durable and resistant coating
4.Assembly instructions in English
5.Colorless 6mm or 8mm thick cell polycarbonate sheets
6.Guarantee of resistance of polycarbonate plates for 5 years
7.Resistant to strong wind
8.A gutter system that prevents water from running off the roof
9.Wall mounting
10.Light permeable plates
11.Hail and impact resistant
12.Modern look
13.It protects against rain and unfavorable weather conditions
14.The elements are cut to size and have pre-drilled holes (it may be necessary to make several holes and adjust the dimensions for several elements)
15.The set includes mounting elements, anchors and dowels for attaching the roof to the wall and to the ground

Technical specifications:

Material frame: aluminum powder-coated
Material connections: galvanized steel
Material roof: polycarbonate with UV coating
Color frame: white
Color of web plates: transparent
Number of posts: 4
Number of rain gutters: 3
Number of channel drain: 4
Roof pressure load capacity: 70 kg / m²
Wind force: Up to 100 km/h (wind force 10)
Dimensions (approx.):
Width: 618 cm
Depth: 293 cm
Front height: 212 cm
Height at front: 226 cm
Rear height: 278 cm
Metal thickness: 1 mm
Thickness double wall plates: 6 mm
Post dimensions: 4 x 10 cm
Scope of delivery:
1 x patio cover
1 * Instruction

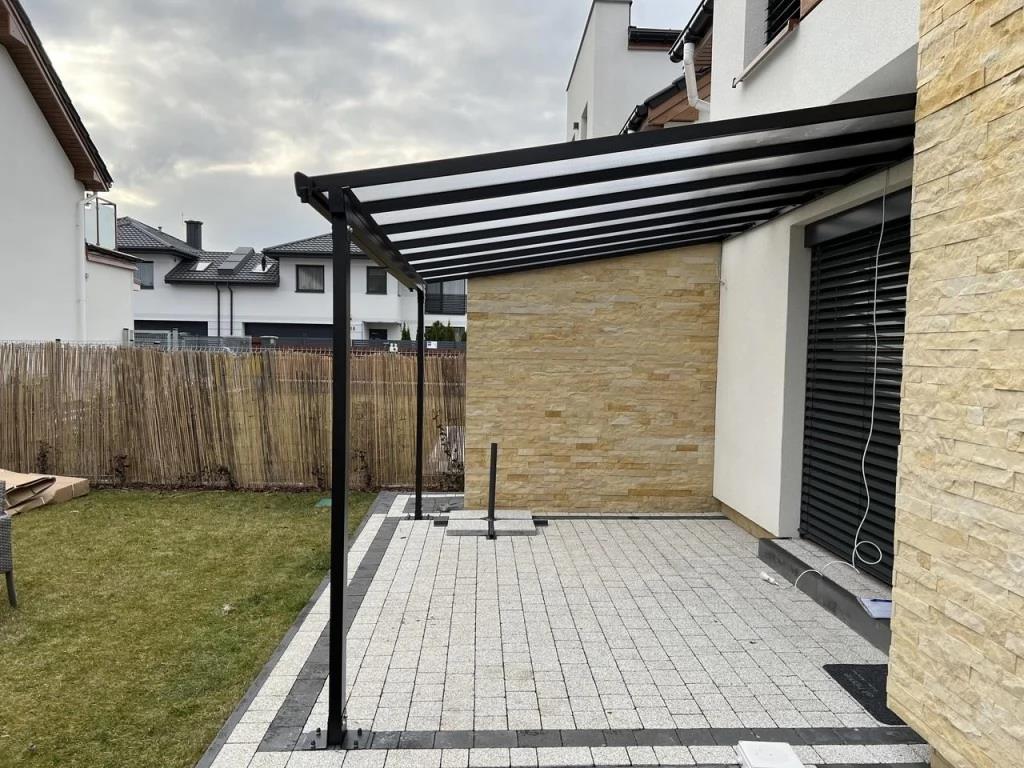

Products Photos

Packing &Loading

Reallytool Co. was established in 2003 with a registered capital of 4.99 million yuan, is a company specializing in the design, production and sales of sunshades, metal pet cages, outdoor parking sheds, firewood racks and other outdoor products. Covering an area of 18000+ square meters, it now has more than 100 employees, ship 25-30 40'HQ per month,the company has passed the global BSCI factory certification.

We sincerely welcome new and old customers from all over the world to call and write to negotiate business and create brilliance!
